1 TON HD STEERING KIT

heavy duty steering kit,1.5 250 wall,.25 wall,chevy tie rod ends,tube inserts,crossover,steering kit,HS-HD-KIT,HS-HD,

HS-HD-KIT
1 TON HD STEERING KITS
FULL CROSSOVER OR Y-LINK
---------------------------------
Kit Includes:
2- Left hand 1 Ton Tie Rod ends (ES2234L) or 1 (ES2233L) For Y-link Kit is Substituted
1- ES2027L Can be substituted for ES2234L, recommended for Y-link Kits with High lift.(ES2027L can operate at a 60 degree angle but pitman arm will need to be reamed deeper.)
2- Left Hand Jam Nuts
2- Left Hand Tube Inserts
2- Right hand 1 Ton Tie Rod ends (ES2234R)
2- Right Hand Jam Nuts
2- Right Hand Tube Inserts
8- Ft 1.5 DOM .250 WALL TUBE

Tube will need to be cut to correct length by individual

**PLEASE VIEW PICTURE FOR REAMING OPTIONS SO THERE IS NO MISTAKE**
Pricing: $350.00

Customize Your Item

- NO REAM -
- Select Style -
 * required
- Sub High Angle Pitman arm T-ROD -
- Select Tie Rod End -
 * required
Qty:

Description

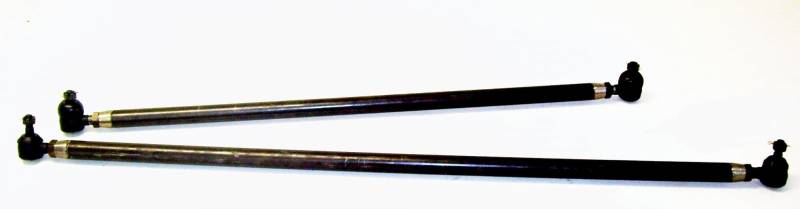

1 Ton Heavy Duty Steering Upgrade 1.5 inch .25 wall DOM tube with tube inserts, Jam Nuts, and 1 ton chevy tie rod ends 7/8 18 TPI.

Full Crossover Steering
Both the Drag link (Yellow) and tie rod (red) are connected to a High steer arm near the top of the knuckle.

Crossover Steering
The Drag link (yellow) Is connected to a high steer arm near the top of the knuckle and the tie rod (red) is connected to the knuckle's steer arm.

Y-Link Steering
The Drag link (yellow) is connected somewhere along the Tie rod (red). The tie rod is connected directly to the knuckle's steer arm.

Details

  • HS-HD-KIT
  • HS-HD-KIT
  • ECGS
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 38.0 lbs.
