1 TON HD STEERING KIT - Y-link

heavy duty steering kit,1.5 250 wall,.25 wall,chevy tie rod ends,tube inserts,crossover,steering kit,HS-HD-KIT,HS-HD,

SKU: HS-HD-KIT-Y

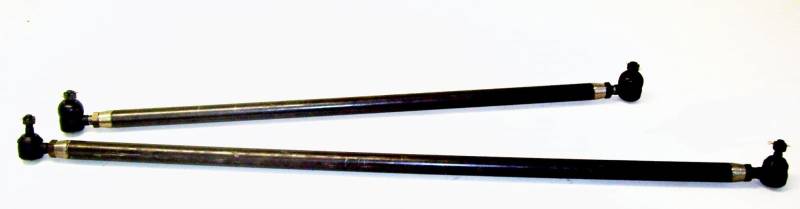

1 TON HD STEERING KITS - Y-LINK
---------------------------------
Kit Includes:
1- Left hand 1 Ton Tie Rod end (ES2234L or ES2027L)*
1 Left hand 1 Ton Tie Rod end for Y-link Kit (ES2233L)
2- Left Hand Jam Nuts
2- Left Hand Tube Inserts
2- Right hand 1 Ton Tie Rod ends (ES2234R and/or ES2026R)*
2- Right Hand Jam Nuts
2- Right Hand Tube Inserts
8- Ft 1.5 DOM .250 WALL TUBE

Tube will need to be cut to correct length by end user

*Combinations of included tie rod ends will differ based on the options selected.

REAM DIRECTION - Refers to the side we ream the ES2233L from resulting in the drag link end body being ABOVE or UNDER the knuckle.

For Pitman Arm end, HA=High Angle which is the ES2027L. TJ=TJ Pitman Arm which uses ES2026R
ES2027L can operate at a 60 degree angle but pitman arm will need to be reamed deeper.

**PLEASE VIEW PICTURE FOR REAMING OPTIONS SO THERE IS NO MISTAKE**

Pricing: $350.00

Customize Your Item

Choose which direction you want the Knuckle Drag Link End to be Reamed for result of ABOVE or BELOW the Knuckle AND which Drag Link End you want at the Pitman Arm.

REAM AND DRAGLINK OPTIONS

- REAM AND DRAGLINK OPTIONS -

* required

Qty:

Description

1 Ton Heavy Duty Steering Upgrade 1.5 inch .25 wall DOM tube with tube inserts, Jam Nuts, and 1 ton chevy tie rod ends 7/8 18 TPI.

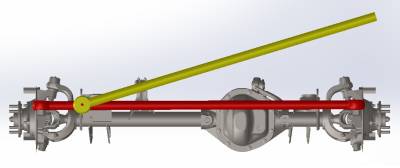

Y-Link Steering
The Drag link (yellow) is connected somewhere along the Tie rod (red). The tie rod is connected directly to the knuckle's steer arm.
