KP540 Builder Kits

Build the steering axle once and build it right. KP540 is a purpose built 40 spline, 1550 compatible kingpin system that combines serviceable spindle and hub architecture with an overbuilt bearing arrangement and real world options. It is the foundation we use on hard wheeled crawlers, competition inspired buggies, and heavy trail rigs that need dependable steering and braking.

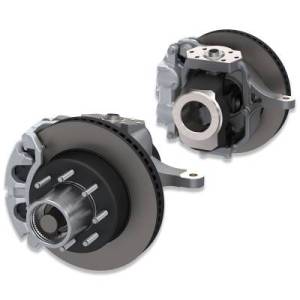

What comes in a KP540 builder kit
• Inner Cs and knuckles machined for 40 spline, 1550 joint window geometry
• Serviceable spindles, hubs, bearings, races, seals, and hardware
• Options for high steer arms, double shear solutions, and steering arm hardware
• Your choice of 40 spline manual locking hubs or solid drive slugs
• Brake compatibility for common rotor and caliper packages

Why KP540
• Strength from the 40 spline interface and large 1550 joint window
• Timken tapered roller bearings with wide spacing for shock load distribution
• True serviceability since bearings, seals, and small parts are widely available
• Configurable steering with room for assist or full hydro ram mounting
• Brake choices that scale with weight, tire size, and driving style

Tube and housing compatibility
• Offered for 3.5 inch and 4.0 inch axle tubes
• Works with common Dana 60 pattern center sections and ECGS complete front rollers
• Wheel mount surface, brake hat, and caliper clearances are considered during setup to keep scrub and packaging tidy

Hubs vs slugs
• Manual locking hubs give you street and trail flexibility, reduced driveline wear, and easy flat towing
• Drive slugs eliminate moving parts for maximum simplicity in competition and ultra hard use
• Both options are sized for 40 spline to keep the cross section strong at the wheel end

Steering layout notes
• High steer arms raise the tie rod to clear rocks and protect linkage
• Keep the ram in plane with the knuckle arms to prevent side loading
• Plan drag link angle with ride height to control bump steer and on center feel

Brake setup guidance
• Larger rotors and multi piston calipers increase heat capacity and reduce fade on long descents
• Choose pad compounds that match your temperature range and tire traction
• Verify wheel barrel clearance and hat offset during mockup

Quick spec your kit
• Weekend crawler on 37 to 40 inch tires: manual hubs, high steer arms, mid mass rotor, performance pad
• Heavy trail rig or overland build: manual hubs, high steer, higher mass rotor for loaded descents
• Competition buggy on stickies: slugs, double shear steering arm solution, high mass rotors, race pads

FAQs
Q: Why choose KP540 over a unit bearing conversion
A: Serviceable spindles and Timken bearings allow inspection, repack, and replacement. Parts are widely available and the wide bearing spacing handles impacts better in off road abuse.

Q: Do I need manual hubs or slugs
A: Manual hubs are the right call for mixed street and trail. Slugs are ideal for competition or when simplicity and consistency matter more than disconnect convenience.

Q: Which tube size should I pick
A: Match the kit to your housing. Many builders use 3.5 inch for lighter rigs and 4.0 inch for heavier builds and high power applications.

Q: Will KP540 work with full hydro
A: Yes. There is room for assist or full hydro. Use high steer arms that keep the ram aligned with the steering arm plane and protect the cylinder from rock contact.

Optimization tips for installers
• Mock up steering arms, tie rod, and drag link with the shocks at ride height and at full bump
• Test fit brakes with your wheels before final welding to verify rotor hat and caliper clearance
• Torque bearings and hub hardware to spec, then recheck after the first shakedown

KP540 builder kits are built for people who would rather spend weekends wheeling than fixing. Spec the options that match how you drive, and your steering axle will turn, stop, and survive.
