Toyota 8" Clamshell Bushing COMPLETE KIT (Eliminates Needle Bearing)

EVERYTHING YOU NEED FOR COMPLETE REMOVAL OF OE NEEDLE BEARING AND INSTALLATION OF T8 CLAMSHELL BUSHING AND SEAL

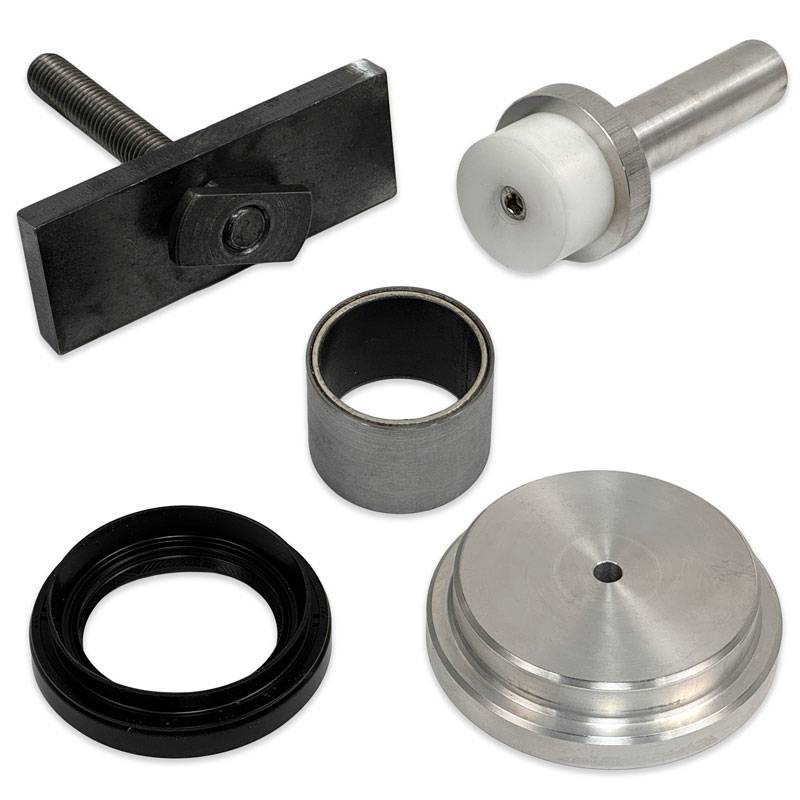

INCLUDES:

1 - BUSHING - T8CS-BUSHING
1 - BEARING PULLER TOOL - T8CS-BUSHING-PULLER
1 - DRIVER SIDE SEAL - ASI-T8CS-D (90311-47027)

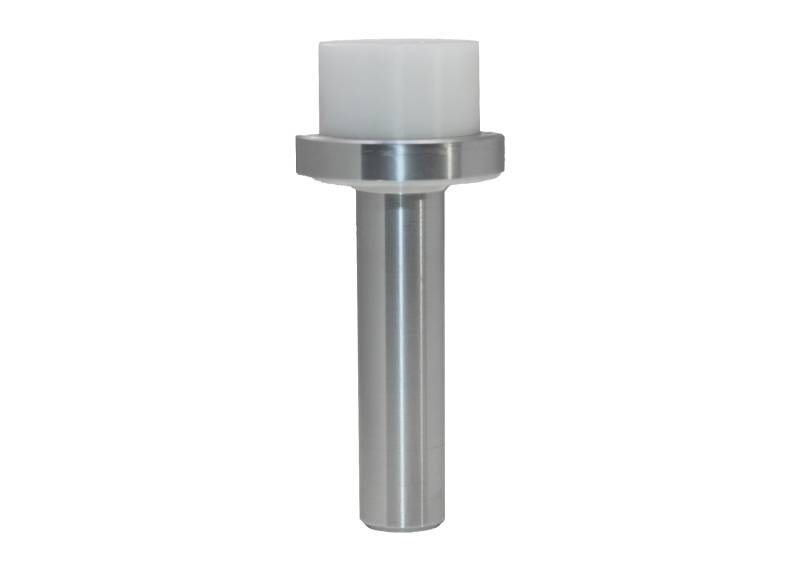

1 - BUSHING INSTALLATION DRIVER - TOOL-BUSH-T8CS
1 - SEAL INSTALLATION PUCK - TOOL-BUSH-PUCK

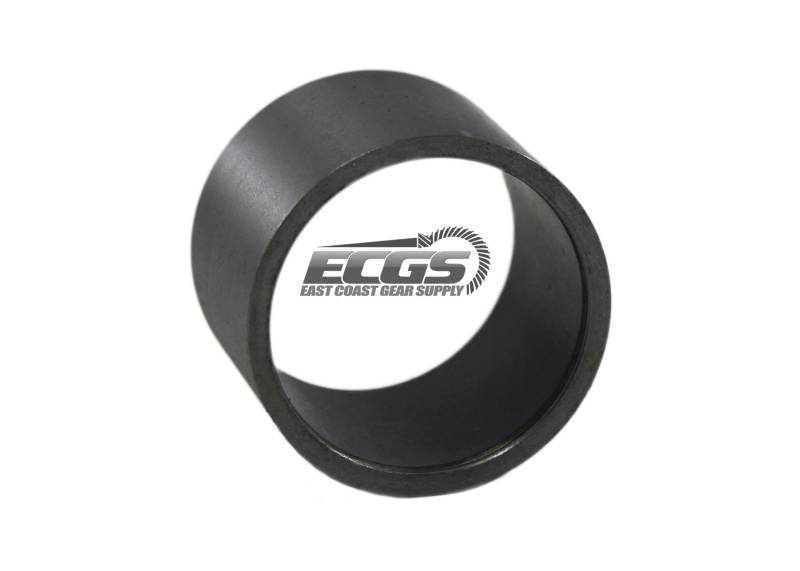

One Sintered PTFE Bushing, metal backed, bronze inlaid, PTFE coated CV axle bushing for Toyota 8" front clamshell differential.

CHOOSE BETWEEN:

PREVIOUS GENERATIONS: 2005-2023 Tacoma, 2007-2014 FJ Cruiser, 2003-2024 4Runner OR

CURRENT (NEW) GENERATION: 2024+ Land Cruiser (US), 2024+ Tacoma, 2025+ 4Runner.

DOES NOT FIT ALL-WHEEL-DRIVE (AWD) 4RUNNER OR AWD FJ CRUISER.
Replaces Driver side CV axle needle bearing with bushing to help control Vibration and shaft float common on these differentials. Replaces Needle Bearing Part # 90364-35010 and 90364-35008. This is for the drivers side ONLY, the passenger side uses a ball bearing.

For further information on the issue with the differential assembly please view our short tech video.

TECH VIDEO

To see how to remove the bearing and install new bushing please view our tech video of the removal and install

REMOVAL/INSTALL VIDEO

Written Instructions with photos are available at the bottom of this page in a PDF format.

PLEASE READ OUR BUSHING FAQ PAGE FOR ANY OTHER QUESTIONS!!


THIS IS FOR THE DRIVER'S SIDE ONLY

FOR THE SEAL, CHOOSE BETWEEN:
PREVIOUS GENS: 2005-2023 Seal (90311-47012)
CURRENT GEN: 22+ Tundra, 23+ Sequoia, 24+ Land Cruiser (US), 24+ Tacoma, 25+ 4Runner Seal (90311-47040)
Current Gen uses a different Seal and Seal Installer tool than older models.
