ECGS Toyota Clamshell Bushing FAQs
The ECGS Toyota Clamshell Bushing replaces the factory driver-side needle bearing used in many Toyota 4WD IFS front clamshell differentials. This common needle bearing issue can cause CV axle movement, shaft slop, humming, buzzing, growling, or a vibration felt through the gas pedal, especially on lifted Toyota trucks and SUVs with larger tires, long travel suspension, or increased CV axle angle.
ECGS PTFE clamshell bushings are available for Toyota 7.5-inch, 8-inch, and 9-inch clamshell front differentials used across many Tacoma, 4Runner, Tundra, Sequoia, FJ Cruiser, Pickup, and T100 applications. Because Toyota applications vary by year, model, drivetrain, and differential size, always select your bushing or complete kit from the product listings on this page.
1. What does the ECGS Clamshell Bushing fix?
The ECGS Clamshell Bushing replaces the factory driver-side needle bearing in many Toyota 4WD front clamshell differentials. This helps correct the common Toyota front differential vibration, growl, hum, buzz, or “whomp-whomp” noise caused by driver-side CV axle support wear.
If your Toyota truck or SUV has a vibration that changes or disappears when shifting from 2WD into 4HI, the driver-side needle bearing is a likely cause. Choose the correct ECGS Clamshell Bushing or Complete Kit from this category page based on your vehicle application.
2. How do I tell if my Toyota vibration is caused by the needle bearing?
A quick field test is to drive around 35–45 mph in 2WD, then shift into 4HI where it is safe and appropriate to do so. If the vibration, growl, hum, or cyclic noise goes away in 4HI and comes back when you shift back into 2WD, the driver-side clamshell needle bearing is likely worn.
This test is not a complete diagnosis for every vibration, but it is one of the easiest ways to identify the common Toyota clamshell needle bearing issue.
3. What does the needle bearing vibration feel or sound like?
Customers often describe it as a front-end vibration, growl, hum, drone, roar, buzz, gas-pedal vibration, or “whomp-whomp” noise. It is commonly noticed around 30–50 mph, though the exact speed can vary based on tire size, lift height, CV angle, drivetrain load, and bearing wear.
If the noise disappears in 4HI and returns in 2WD, the ECGS Clamshell Bushing is the correct upgrade to look at first.
4. Why does the factory Toyota needle bearing cause vibration?
The Toyota clamshell differential design uses a needle bearing to support the driver-side CV axle. Over time, the factory needle bearing can allow excessive CV shaft movement inside the differential housing. That movement can create imbalance, vibration, humming, buzzing, or accelerated wear.
The problem is often more noticeable after a suspension lift, long travel suspension, larger tires, or CV axle replacement because those changes can increase side load on the driver-side axle support.
5. Why does the ECGS PTFE bushing work?

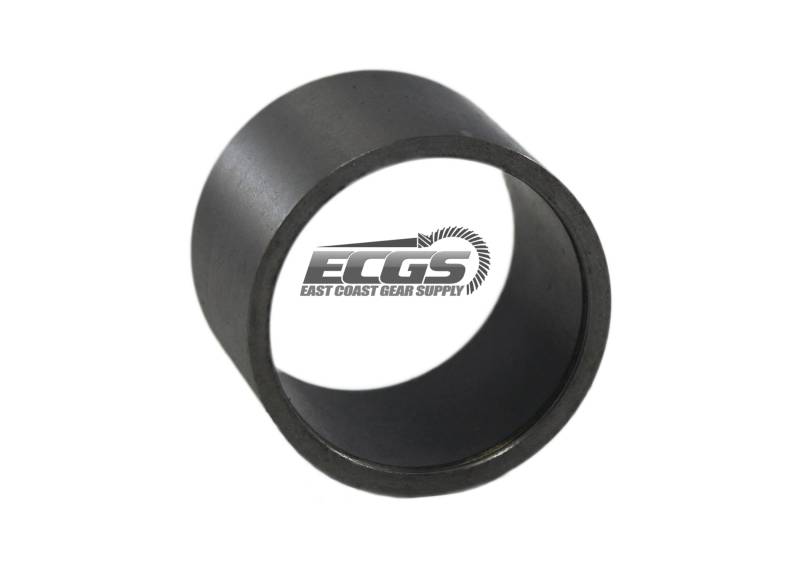

The ECGS Clamshell Bushing is a direct replacement for the factory driver-side needle bearing. It is made with a metal-backed, bronze-inlaid, PTFE-coated bushing surface designed to better support the CV axle under side load.
PTFE is used in demanding industrial and aerospace applications because of its low-friction properties and durability under continuous load. In this application, the ECGS bushing helps eliminate shaft slop and restore proper support to the driver-side CV axle.
6. Will this problem get worse if I do not replace the needle bearing?
Yes, it can. Once the factory needle bearing starts wearing, continued load and movement can make the vibration worse over time. In a worst-case scenario, bearing material can break down, create metal debris, damage the CV support area, cause leaks, or contribute to additional drivetrain issues.
Replacing the factory needle bearing with the ECGS Clamshell Bushing is a targeted way to correct the problem before it becomes a larger repair.
7. Will the ECGS Clamshell Bushing work on an AWD Toyota?
No. The ECGS Clamshell Bushing is for applicable Toyota 4WD vehicles with a selectable 4WD system and front clamshell differential. It is not for full-time AWD or non-selectable full-time 4WD applications.
If your vehicle does not have a way to shift between 2WD and 4HI/4LO, this specific driver-side needle bearing vibration issue generally does not apply.
8. Is this an issue on 2WD Toyota trucks or SUVs?
No. Toyota 2WD trucks and SUVs do not have the front clamshell differential or driver-side front CV axle needle bearing involved in this issue.
9. The Toyota dealership says I need a whole new front differential. Will that fix it?
A replacement front differential may temporarily eliminate the noise if the old driver-side needle bearing was worn, but if the replacement differential uses the same factory-style needle bearing design, the same issue can return later.
If the rest of your differential is healthy and the vibration disappears in 4HI, replacing the driver-side needle bearing with the ECGS Clamshell Bushing is usually the better targeted repair. If you already installed a new or used front differential, installing the ECGS Clamshell Bushing can help prevent the same issue from coming back.
10. My Toyota is stock. Do I still need the ECGS Clamshell Bushing?
You can. Lifted trucks are more likely to experience the issue because increased CV angle can add side load to the factory needle bearing, but stock vehicles can still develop needle bearing wear and vibration.
Many owners install the ECGS Clamshell Bushing as preventative maintenance, especially when replacing CV axles, doing front differential work, or trying to eliminate a known Toyota front-end vibration.
11. Does lifting my Toyota make the needle bearing problem worse?
Usually, yes. A suspension lift, leveling kit, long travel kit, or larger tire setup can change the CV axle angle and increase side load on the factory driver-side needle bearing. The factory needle bearing was not designed to handle that type of side load long-term.
That is why this issue is commonly reported after a lift, leveling kit, or CV axle change. The ECGS Clamshell Bushing gives the driver-side CV axle better support than the original needle bearing design.
12. Does the ECGS Clamshell Bushing fix every Toyota vibration?
No. It fixes the common driver-side clamshell needle bearing issue, but not every vibration is caused by the needle bearing. Tires, wheel balance, wheel bearings, CV axles, driveshafts, differential problems, suspension components, and alignment can also cause vibration.
The 4HI test is the best quick check. If the vibration goes away in 4HI and comes back in 2WD, the ECGS Clamshell Bushing is the right product to consider. If the vibration does not change, another issue may be present.
13. Do I need to replace my CV axle at the same time?
Usually, no. If the CV axle is in good condition, you can normally reuse it. Replace the CV axle if it has excessive wear, damaged splines, torn boots, pitting, looseness, or other visible damage.
If you are already replacing a CV axle, it is a great time to install the ECGS Clamshell Bushing because the axle is already coming out.
14. Do I need the ECGS Complete Kit or just the bushing?

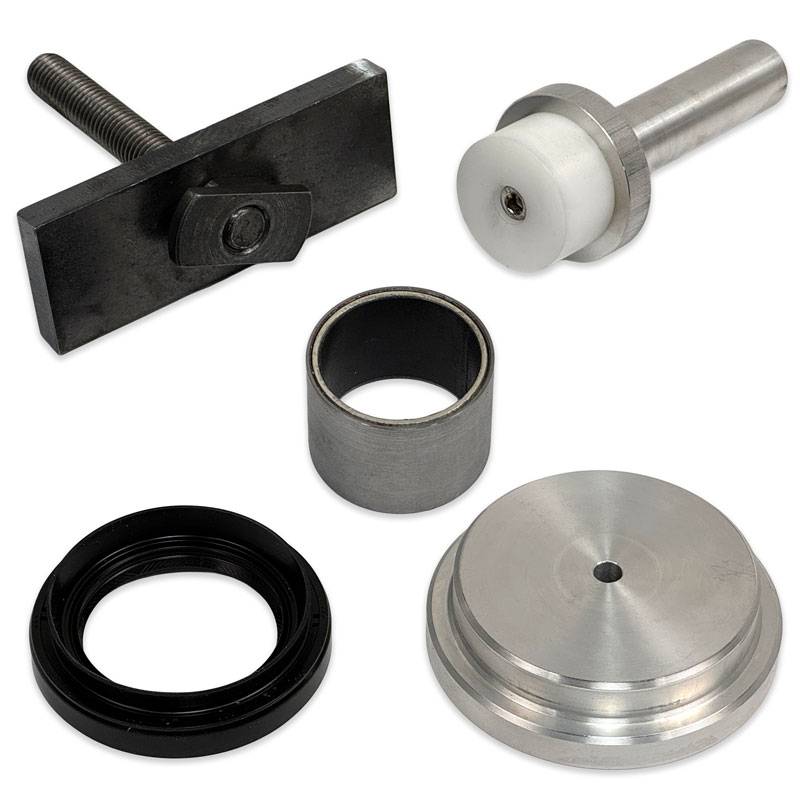

If you are doing the job yourself and do not already have the correct specialty tools, get the ECGS Complete Kit. The Complete Kit includes the correctly sized bushing, removal tool, installation tool, seal driver, and seal components needed for the job.
The tools are application-specific. There are multiple Toyota clamshell bushing sizes, and the tools do not interchange across every application. Using the correct ECGS kit makes the job easier, cleaner, and less likely to damage the housing, seal, or bushing.
If a professional shop is doing the work, ask whether they already have the correct ECGS tools for your exact Toyota differential. If not, the Complete Kit is still the best choice.
15. Is the ECGS Clamshell Bushing hard to install?
It depends on your mechanical experience. Many mechanically capable Toyota owners install it at home, and the job can be done with the vehicle on the ground. However, you will be removing the driver-side CV axle, extracting the factory needle bearing, installing the bushing, and replacing the seal.
ECGS has an in-depth installation video showing the process both on the bench and in the vehicle. Watch the video first, then decide whether you are comfortable doing it yourself or would rather have a shop install it.
16. What tools do I need to install the ECGS Clamshell Bushing?

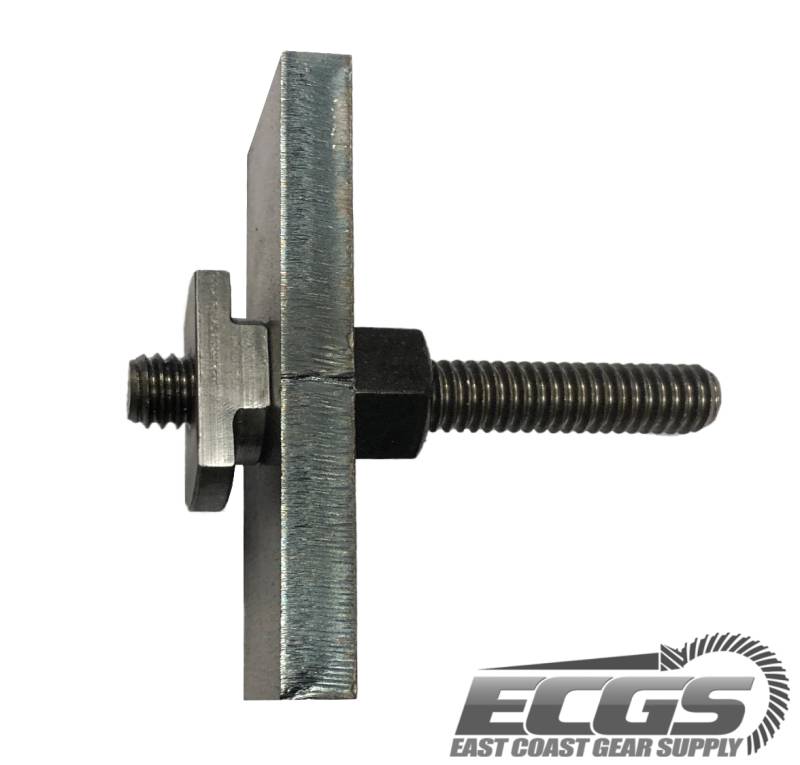

The easiest path is to buy the ECGS Complete Kit for your specific vehicle. It includes the specialty removal and installation tools needed for the bushing and seal. You will still need basic hand tools such as a wrench, hammer, punch, and magnet.
Do not assume a generic bearing puller or a tool from a different Toyota clamshell size will work. Use the correct ECGS kit for your vehicle.
17. Do I need to drain the front differential fluid?
No, you do not normally need to fully drain the front differential for this job. Some gear oil may come out during the repair, so check the fluid level afterward and top it off as needed.
18. What sealant should I use on the axle seal?
Use a sealant that is compatible with gear oil or transmission fluid. Permatex gear-oil-safe sealants are commonly available at parts stores. ECGS uses Dowsil 3-0115 automotive sealant in-house.
19. What grease should I use on the axle seal or seal spring?
Any quality axle, bearing, or assembly grease is fine. The grease is mainly used to help retain the seal spring and keep components in place during installation.
20. Do I need to replace the driver-side axle seal?
Yes, replacing the driver-side axle seal is strongly recommended. The seal is commonly damaged during removal, and replacing it while the CV axle is out helps prevent leaks after the repair.
The ECGS Complete Kit includes the correct seal components for the application.
21. Do I need to replace the passenger-side bearing too?
No, not for this issue. The common needle bearing vibration problem is on the driver side. The passenger side of the Toyota clamshell differential is supported differently and does not see the same type of load as the driver-side needle bearing.
Replacing the passenger-side bearing is a much more involved job and usually does not provide a worthwhile benefit for this specific vibration concern.
22. How far do I drive in the ECGS Clamshell Bushing?
The bushing should be installed flush with the carrier/housing. Use the correct ECGS installation tool for your application so the bushing seats squarely and at the correct depth.
23. Which side of the bushing faces out?
Install the replacement bushing with the steel face outward. The steel face protects the bushing while it is being driven into the housing.
24. I broke a tool or part during installation. What should I do?
Stop the installation and contact East Coast Gear Supply before continuing. Call ECGS at 919-672-2705, Monday through Friday, 8:00 AM to 5:00 PM Eastern Time. Our team will help you figure out the next step.
25. Does ECGS make clamshell bushings for the newest Toyota trucks and SUVs?
Yes, ECGS offers clamshell bushings for many current and late-model Toyota trucks and SUVs. Because Toyota applications vary by year, model, differential size, and drivetrain type, use the ECGS Toyota Clamshell Bushing category page to select your vehicle and confirm the correct bushing or Complete Kit.
26. Which Toyota vehicles use the ECGS Clamshell Bushing?
ECGS offers clamshell bushings for many Toyota 4WD applications, including Tacoma, 4Runner, Tundra, Sequoia, FJ Cruiser, Pickup, and T100 platforms. Different vehicles use different bushing sizes, including Toyota 7.5-inch, 8-inch, and 9-inch clamshell applications.
Always choose your product by vehicle year, model, drivetrain, and differential size before ordering.
27. Do you make this bushing for non-Toyota vehicles?
No. ECGS Clamshell Bushings are built for applicable Toyota 4WD clamshell front differentials. This specific needle bearing vibration issue is not something we currently offer a bushing for on other vehicle brands.
If your vehicle is not a Toyota 4WD with an applicable clamshell IFS front differential, have a qualified mechanic diagnose the vibration.
28. Does this fit V8 Limited, full-time 4WD, AWD, or manual full-time 4WD Toyota models?
No. Full-time 4WD and AWD-style Toyota applications are not the same as the selectable 4WD clamshell applications this bushing is designed for. If you cannot shift between 2WD and 4HI/4LO, this specific driver-side needle bearing issue generally does not apply.
29. Where should I buy the correct ECGS Clamshell Bushing?
Buy directly from the ECGS Toyota Clamshell Bushing category page so you can select the correct vehicle application, bushing size, seal, tool option, or Complete Kit. This is the best way to avoid ordering the wrong size or missing the tools needed for installation.
