Nitro Excalibur - 300M Dana 30/44 U-Joint
excalibur 300m u-joint, 300m u-joint, excalibur, dana 30, dana 44, d30, d44, gm 10 bolt, u-joint, 300m, u-joints, np 760x-300m-kit, np760x-300m-kit, nitro, nitro gear & axle, front axle, axle, dana 60, made in usa, lifetime, warranty, raleigh, durham, nor

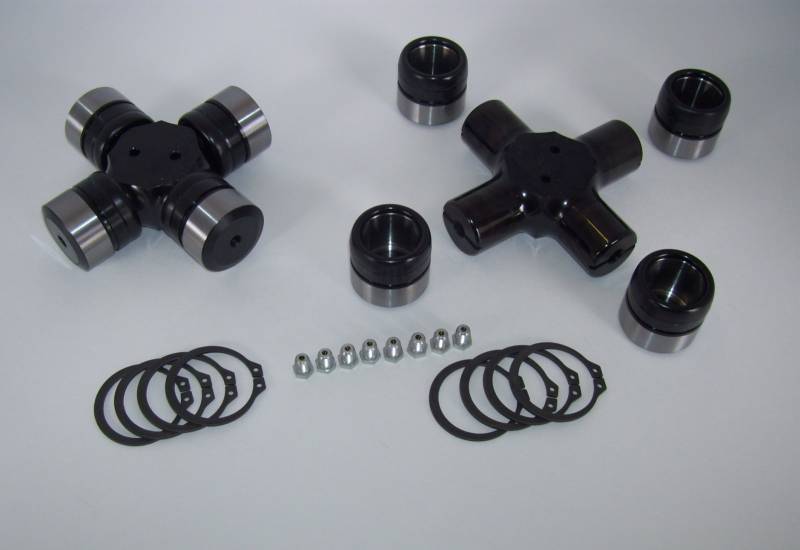

The Excalibur 300M U-joint for your Dana 30 (D30), Dana 44 (D44), or GM 10 bolt front axle, is 100% American made. The cross is made from heat treated billet 300M and the caps are 4340. The entire u-joint unit is heat treated and cryo'd for ultimate strength and wear resistance. The Nitro Exclaibur u-joint Joint comes with full circle clips and grease fittings that install into the caps. There are no needle bearings in these u-joints. This allows the legs for the caps to be thicker.
These Nitro 300M u-joints are for off-road use only and should be greased often if driven at high speed. It is the strongest u-joint on the market. These joints are backed by Nitro Gear & Axle with a no questions asked Lifetime Warranty. The trick is you have to break them. We do not have an exact torsional breaking load do to the fact that there is not a shaft on the market that will hold and break the Nitro Excalibur u-joint first. We are working on a fixture to break these (No easy task). Rest assured these will outlive any shaft on the market and your u-joint will not be the weak link.
Nitro Excalibur 300M U-Joint Features:
- Precision Machined from 300M Billet Material
- No needle bearings to crush. Full circle snap rings
- State-of-the-art heat treating process, surface-hardened trunnion to prevent galling
- MADE IN USA
- Lifetime Warranty against breakage
- NP 760X-300M-Kit 300M Nitro Excalibur U-Joint for Dana 30 (D30), Dana 44 (D44) & GM 10 Bolt Front Axle (Replaces 297X 760X)(Pair)
- NP 806X-300M-Kit 300M Nitro Excalibur U-Joint Dana 60 (D60) & Ford Super Duty Front Axle (Replaces 806X 733X)(Pair)
Click to see all U-Joints offered for Dana 30, Dana 44, Dana 60, Ford, GM and more.This is for ONE joint!
