DANA 60 TJ REAR BOLT IN AXLE ASSEMBLY (SEMI FLOAT 5X4.5 / 5X5.5)

Click on image to zoom

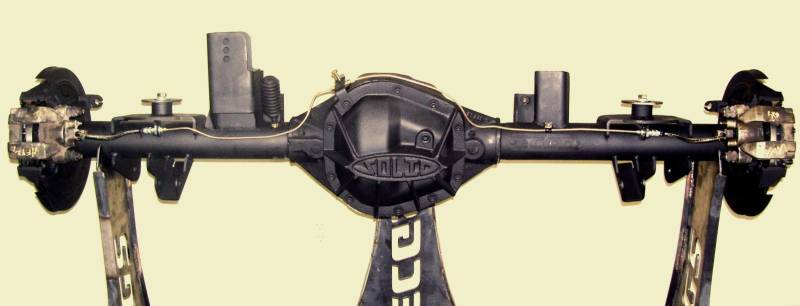

DANA 60 TJ REAR BOLT IN AXLE ASSEMBLY (SEMI FLOAT 5X4.5 / 5X5.5)

DANA 60 REAR BOLT IN TJ JEEP WRANGLER AXLE ASSEMBLY

SEMI-FLOAT W/ DUAL BOLT PATTERN 5X4.5 AND 5X5.5

BASE AXLE $1650 INCLUDES:
* DANA 60 HOUSING CLEANED AND BRACKETED W/ TJ HEAVY DUTY BRACKETS

* BIG BEARING SET 20 HOUSING ENDS WELDED ON (1 TON WHEEL BEARING ENDS)

* 2 - 35 SPLINE CHROMOLY SHAFTS DOUBLE DRILLED FOR 5X4.5 AND 5X5.5

* SHAFTS ARE FULLY ASSEMBLED W/ SET 20 BEARINGS, RETAINER PLATES, SPACER RING, AND RETAINING HARDWARE

* FORD DISC BRAKE KIT W/ INTEGRAL DRUM PARKING BRAKE

-----------------------
SEE OPTIONS BELOW TO FINISH BUILDING THE AXLE TO YOUR SPECS!
Pricing: $1,650.00

Customize Your Item

- CHOOSE TRACTION TYPE -
- CHOOSE DIFF COVER -
- CHOOSE GEAR RATIO -
- SELECT YOKE -
Qty:

Description

The Dana 60 complete bolt in axle assembly is a perfect upgrade for the hardcore off road enthusiast. Don't waste money on your Dana 44 or Dana 35 only to find out you need to upgrade again.
Benefits:
* Confidence in having a 9.75 Ring gear
* Set 20 Wheel Bearings - Each bearing is rated to carry the entire weight of your Jeep, Found in 1 Ton Semi float applications
* 35 spline Chromoly shafts - the upgraded shafts come standard
* Disc brakes with E-brake compatibility to you current Jeep
* Stock Lug pattern 5x4.5 with the option to change to 5x5.5 whenever you choose

Details

  • 6865173
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • $200.00
