Dana 30 ARB Air Locker RD104 - 30 Spline (3.73 and up)

arb super dana 30 air locker, arb super dana 30, arb, super dana 30 air locker, rd104, super dana 30, super dana, 30, arb air locker, air locker, air, locker, 30 spline, 3.73 and up, gear, ratio, axle, differential, diff, locking, spline, posi-traction, r

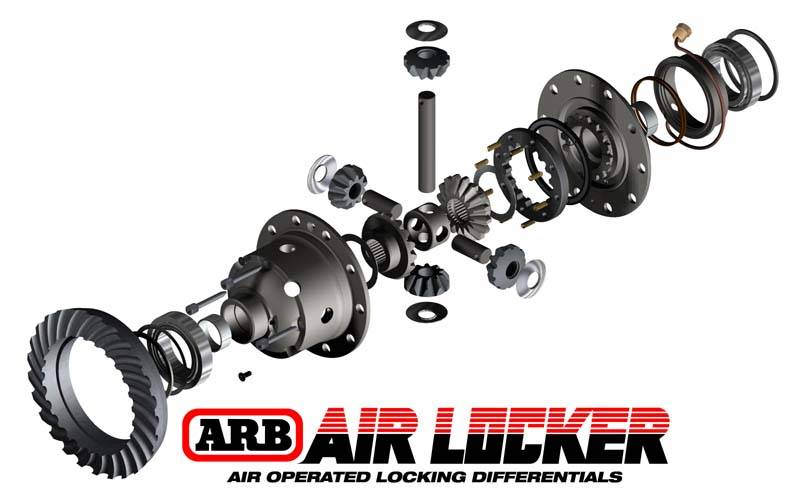

Super Dana 30 ARB® #RD104
Air Locker Features

The ARB Super Dana 30 air locker for your 30 spline axle for 3.73 and up gear ratios, can instantly lock differentials and allow you to tackle the toughest off-road terrain. The world's best traction aid, ARB Air Lockers keep you moving in all conditions.

Air Lockers from ARB are currently available in over 100 configurations to suit a wide range of off-road and 4x4 vehicles from around the world. Because the Air Locker is only engaged when needed, it can be installed in BOTH the front and rear axles, with separate switches independently controlling the locker from within the off-road truck or vehicle.

ARB Super Dana 30 Air Locker Logo

Pricing: $940.50


ARB® Air Locking Diffs Dana 30 Applications »

Please click on your specific Dana 30 differential application below to see the proper ARB locker for your setup.

ARB® Air Locking Diffs For Competition/Off-Road/Rock Climbing »

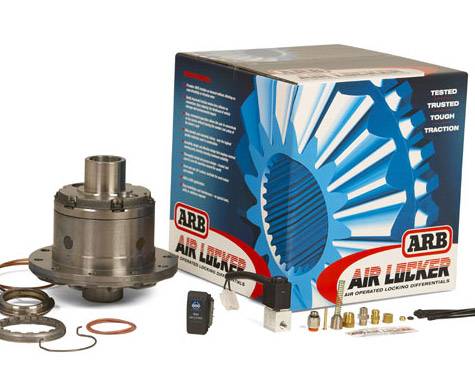

Installation of the ARB RD104 air locker should be performed by a qualified differential technician, although no special tools or skills are required apart from those necessary for fitting a standard differential. When installed with an ARB air compressor (high putput or mini), the locker system is supplied as a complete kit which contains all of the parts necessary for proper installation, including industrial grade control switches, air lines and fittings. ARB offers two compressor models suitable for Air Locker operation (high output air compressor or mini air compressor). A dedicated air activation system is available which is extremely durable and compact. Alternatively a larger compressor can be specified, which is also perfect for inflating tires, air mattresses and a host of other applications where compressed air is required.

Click for ARB #RD104 - Super Dana 30 Air Operated Differential Locker specs sheet

Shipping Information

  • Item Requires Shipping
  • 19.0 lbs.
